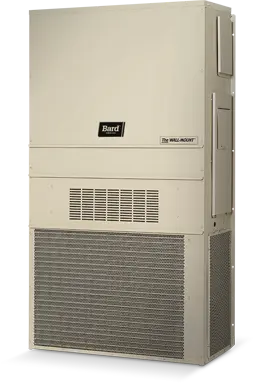

Wall-Mount Heat Pump Quiet Climate Two-Stage Step Capacity

Exterior Wall-Mount

Heat Pump

WM-STEP CAPACITY Series

T30S - T60S

The Bard Wall-Mount Heat Pump is a self-contained energy efficient heating and cooling system, which is designed to offer maximum indoor comfort at a minimal cost without using valuable indoor floor space or outside ground space.

Find a Rep

Cabinet Colors
color swatch
X = Beige
color swatch
1 = White
color swatch
4 = Buckeye Gray
color swatch
5 = Desert Brown
color swatch
8 = Dark Bronze
color swatch
S = Stainless Steel

T30S - T60S

  • Up to 15.0 IPLV cooling efficiency
  • Up to 3.5 COP heating efficiency
  • 2.5 to 5 ton cooling capacity
  • Single and three-phase power options
  • Copeland scroll 2-stage compressor
  • ECM indoor blower motor
  • R-410A green refrigerant
  • Factory installed electric heat options
  • Factory installed ventilation options
  • AHRI Certified
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

Model Group Ton Capacity Electrical Supply/Return
(HxW) & Spread (in)
Cabinet
Dimensions (in)
(WxDxH)
T30S 2.5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 8x28
  • 14x28
  • 18
38.2x17.1x70.6
T36S 3
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42.1x22.4x84.9
T42S 3.5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42.1x22.4x84.9
T48S 4
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42.1x22.4x93
T60S 5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42.1x22.4x93

  • 2" MERV8, MERV11 or MERV13 Air Filters
  • UV-C LED Light w/MERV13 Air Filters
  • Field Installed Electric Heat Kits
  • Field Installed Ventilation Options
  • Acoustical Accessories
  • Isolation/Sound Curbs
  • Supply/Return Grilles
  • Thermostats
  • CompleteStat
  • BrightStat

  • Ventilation Options for Model Group(s)- T30S, T36S, T42S, T48S, T60S :
    • Blank Off Plate (No Ventilations)
    • Barometric Fresh Air Damper
    • Motorize Fresh Air Damper (No Relief)
    • Commercial Room Ventilator
    • Economizer
    • Energy Recovery Ventilator
