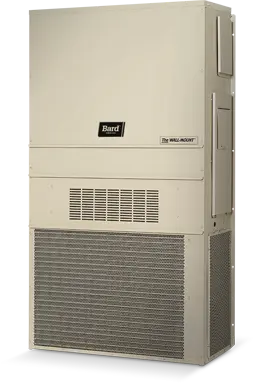

Wall-Mount Heat Pump Quiet Climate Two-Stage Step Capacity Dehumidification
Exterior Wall-Mount
Heat Pump
WM-STEP CAPACITY DEHUM Series
T30S - T60S
This unit is based on Bard’s Wall-Mount Quiet Climate Step Capacity Heat Pump. The active hot gas dehumidification circuit provides a unique dehumidification capability for periods of high indoor humidity conditions. An “energy recovery ventilator” may be provided to allow for outside ventilation air requirements by eliminating excessive sensible and latent loads as a result of the increased ventilation requirement.
Find a Rep
Cabinet Colors
X = Beige
1 = White
4 = Buckeye Gray
5 = Desert Brown
8 = Dark Bronze
S = Stainless Steel
A = Aluminum
T30S - T60S
- Up to 15.0 IPLV cooling efficiency
- Up to 3.5 COP heating efficiency
- 2.5 to 5.0 ton cooling capacity
- Single and three-phase power options
- Dehumidification circuit
- Scroll 2-stage compressor
- ECM indoor blower motor
- R-410A green refrigerant
- Optional electric heat kits
- Optional ventilation alternatives
- AHRI Certified
- ETL Listed (US and Canada)
* For full product specifications see Product Resources tab below.
| Model Group | Ton Capacity | Electrical | Supply/Return (HxW) & Spread (in) |
Cabinet Dimensions (in) (WxDxH) |
|---|---|---|---|---|
| T30S | 2.5 |
|
|
38.2x17.1x70.6 |
| T36S | 3 |
|
|
42.1x22.4x84.9 |
| T42S | 3.5 |
|
|
42.1x22.4x84.9 |
| T48S | 4 |
|
|
42.1x22.4x93 |
| T60S | 5 |
|
|
42.1x22.4x93 |
- 2" MERV8, MERV11 or MERV13 Air Filters
- UV-C LED Light w/ MERV13 Air Filters
- Ventilation Options
- Supply/Return Grilles
- Isolation/Sound Curbs
- Thermostats
- Humidistat
- CompleteStat
- BrightStat
- Ventilation Options for Model Group(s)- T30S, T36S, T42S, T48S, T60S :
- Blank Off Plate (No Ventilations)
- Barometric Fresh Air Damper
- Motorize Fresh Air Damper (No Relief)
- Commercial Room Ventilator
- Economizer
- Energy Recovery Ventilator
