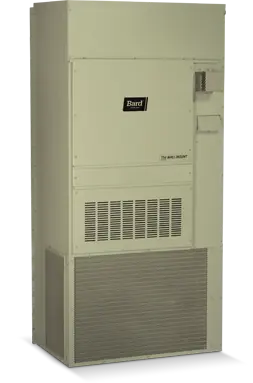

Wall-Mount Gas/Electric Dehumidification

Exterior Wall-Mount

Gas/Electric

G/E-DEHUM Series

W24G - W60G

This unit is based on Bard’s Wall-Mount Electric Air Conditioner with gas fired heating, but it provides a unique dehumidification circuit for periods of high indoor humidity conditions. An “energy recovery ventilator” may be provided to allow for outside ventilation air requirements by eliminating excessive sensible and latent loads as a result of the increased ventilation requirement.

Find a Rep

Cabinet Colors
color swatch
X = Beige
color swatch
Buckeye Gray
color swatch
8 = Dark Bronze

W24G - W60G

  • 11.0 EER cooling efficiency
  • 82% TE (thermal efficiency)
  • 2 to 5 ton cooling capacity
  • Active hot gas dehumidification circuit
  • Single or three-phase power options
  • R-410A green refrigerant
  • 2" MERV8 Air Filters
  • "In-shot" burners
  • Convertible to LP gas
  • Factory installed ventilation options
  • AHRI Certified
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

Model Group Ton Capacity Electrical Supply/Return
(HxW) & Spread (in)
Cabinet
Dimensions (in)
(WxDxH)
W24G 2
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 8x28
  • 14x28
  • 30
24.3x38x81.6
W30G 2.5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 8x28
  • 14x28
  • 30
24.3x38x81.6
W36G 3
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 8x28
  • 14x28
  • 30
24.3x38x81.6
W42G 3.5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42x27.3x87.5
W48G 4
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42x27.3x87.5
W60G 5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42x27.3x87.5

  • 2" MERV13 Air Filters
  • Field Installed LP Conversion Kit
  • Field Installed Ventilation Options
  • Supply/Return Grilles
  • WAG-2-WG Upgrade Curb
  • Thermostats
  • Humidistat
  • CompleteStat
  • BrightStat

  • Ventilation Options for Model Group(s)- W24G, W30G, W36G, W42G, W48G, W60G :
    • Blank Off Plate (No Ventilations)
    • Barometric Fresh Air Damper
    • Motorize Fresh Air Damper (No Relief)
    • Commercial Room Ventilator
    • Economizer
    • Energy Recovery Ventilator
