When gray spaces go down, so do the critical servers that lay at the heart of your data centers. That critical need for continuous operation is why dependable cooling is essential to maintain stable operation.
Redundancy is often built into gray space HVAC design for this exact reason, with hyperscalers and owners/operators defining specific requirements. Once those requirements are set, the priority becomes clear: implement your redundancy strategy in a way that supports reliability, maintenance flexibility, and practical day-to-day operation.
Have a question? Email our engineers.
Understanding N, N+1, and 2N Redundancy
Redundancy starts with a simple question: how much cooling capacity is required, and what backup capacity needs to be available if something goes wrong? There are three different types of redundancy for HVAC units.
N Redundancy
In an N configuration, the HVAC system includes the exact number of units needed for cooling. If the space requires three units to maintain proper cooling, then three units are installed.
While this approach requires the fewest number of units, the limitation is that your system may not meet your required cooling load if one unit goes down. That reality can turn a service issue into an emergency response.
N+1 Redundancy
In an N+1 configuration, one additional unit is installed beyond the required cooling load. For example, if three units are needed to cool the space, a fourth unit is included as standby capacity.
This extra unit allows for some flexibility for gray spaces if one of the active units requires service. It also gives you the option to have the unit available when desired or be able to spread the workload across multiple units.
2N Redundancy
In a 2N configuration, the system includes twice the required capacity. If four units are needed to meet the load, a 2N approach would include eight units.
This approach provides a greater level of backup capacity and can allow runtime to be distributed across more equipment. When designed and controlled properly, that runtime distribution may help extend the life of the overall system.
HVAC Redundancy Best Practices
1. Match Redundant Equipment Properly
Redundancy depends on backup equipment being able to take over when needed. Any extra units should be duplicates of the active equipment you choose to maintain consistency across the entire system.
For gray space HVAC design, this helps keep the system predictable:
- Units can be rotated more consistently.
- Backup equipment can step in without mismatched capacity concerns.
- Maintenance teams have a more standardized system to service.
2. Use Controls to Automate Redundancy
Adding an extra HVAC unit is only part of the strategy. The system also needs to know what to do if a unit goes down, when runtime needs to be balanced, or when a standby unit should be brought online.
Bard control systems can support this process by automating key redundancy functions. For example, the control system can remove an unresponsive unit from operation, bring the standby unit online, and send an alarm so the issue can be addressed. This automated process helps maintain cooling while giving the maintenance team visibility to the problem.
3. Distribute Runtime Across Units
Redundancy does more than just protect gray spaces against unexpected downtime. Having additional units available supports proactive load management that can help extend the life of a complete system.
Rather than leaving one unit idle while the others carry the load, Bard systems make it easy for data centers to distribute runtime across the system. For example, distributing runtime across 2N redundancy can greatly extend equipment life. Whether you choose N+1 or 2N, the result is a more balanced operating profile.
4. Make Maintenance Access Practical
Redundancy is not a replacement for maintenance. It is a safeguard that works best when the rest of the HVAC system is kept in good condition. As a result, it’s important to embrace an HVAC system that allows for ease of serviceability and access.
Bard supports serviceability through several key benefits:

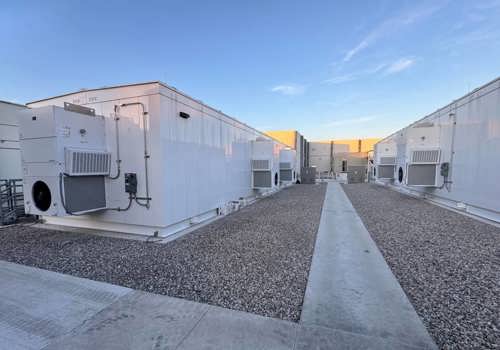

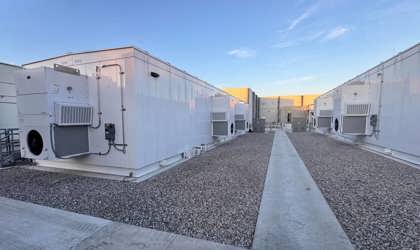

- Exterior wall-mounts are fully serviceable from outside the gray space building without needing access to the building interior. Routine service points are easily reachable through panels on the outside of the unit.
- Exterior wall-mounts allow for minimal construction impacts and quicker installation. Wall-mounts only require basic building wall openings; reducing construction intrusion and debris in sensitive environments.
- An extensive support network is available through local distributors providing troubleshooting and spare parts warehousing to Bard’s own technical support and customer services teams.
5. Start with Quality Units First
Redundancy is designed to prevent unplanned downtime and spread the workload across your HVAC system. However, your starting point should still be durable, reliable HVAC equipment suited for the demands of the gray space.
When data center teams begin with quality wall-mount units, redundancy becomes added reassurance rather than something they expect to rely on regularly. Bard exterior wall-mounts allow customers to invest in an HVAC solution that fits their technical needs and operational priorities. Bard offers:
- Cooling capacities from 1 to 15 tons to match units to your specific heat load.
- Systems that accommodate filters up to MERV 13 and provide high-efficiency performance to keep your air clean and your equipment breathing easy.
- Single packaged units that don’t consume indoor floor space or require large mechanical rooms.
- Controls that allow users to manage up to 14 units in three separate zones with centralized monitoring.
- Durable equipment with optional protective coatings on coils and cabinets to protect units against environmental damage.
Build Gray Space HVAC Redundancy Around Real-World Operation
N+1 and 2N redundancy strategies are not only about adding extra capacity. They are about making sure your HVAC system can respond when something changes, whether that’s planned maintenance, immediate service, or the need to balance runtime across equipment.
The best redundancy strategy is one that is practical to operate, easy to maintain, and supported by controls that help the system respond automatically. Bard Manufacturing works with data center teams to support wall-mount redundancy strategies that help maintain cooling, simplify service, and support long-term operation. Reach out to Bard today to invest in a tailored HVAC system to keep your data centers running.
