I-TEC Heat Pump Two-Stage Step Capacity

Interior Solutions

Heat Pump

I-TEC-STEP CAPACITY Series

I30H1-I60HI

The Bard I-TEC series provides superior indoor air quality and the ultimate in quiet operation. Vented above the sill at window level, the unit is designed to be aesthetically pleasing indoors and out. Ideal comfort. Intelligent technology.

Find a Rep

Cabinet Colors
color swatch
X = Beige
color swatch
4 = Buckeye Gray
color swatch
5 = Desert Brown

Standard Louver Colors
color swatch
Clear Aluminum
color swatch
Dark Bronze
color swatch
Medium Brown

Optional Louver Colors
color swatch
Arctic White
color swatch
Storm White
color swatch
Graphite Grey
color swatch
Milano Beige
color swatch
Dark Bronze
color swatch
Schoolbus Yellow
color swatch
Florida Orange
color swatch
Schoolhouse Red
color swatch
Chili Red
color swatch
Bahama Blue
color swatch
Deep Sea Blue
color swatch
Sage Green
color swatch
Ivy Green

I30H1-I60HI

  • Up to 16.5 IPLV cooling efficiency
  • Up to 3.7 COP heating efficiency
  • 2.5 to 5.0 ton cooling capacity
  • Single and three-phase power options
  • Factory installed electric heat
  • Factory installed ventilation options
  • R-410A green refrigerant
  • Copeland scroll compressor
  • 2-stage cooling / 3-stage heating
  • 2" MERV8 Air Filters
  • ECM variable speed blower motor
  • Eco-friendly insulation
  • AHRI Certified
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

Model Group Ton Capacity Electrical Supply/Return
(HxW) & Spread (in)
Cabinet
Dimensions (in)
(WxDxH)
I30H 2.5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
48x35x99.2
I36H 3
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
48x35x99.2
I36Z 3
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
66x35x99.2
I42H 3.5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
48x35x99.2
I48H 4
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
48x35x99.2
I48Z 4
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
66x35x99.2
I60H 5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
48x35x99.2

  • 2" MERV11 or MERV13 Air Filters
  • UV-C LED Light w/MERV13 Air Filters
  • Hot Water Coils
  • Wall-Sleeve & Louvers
  • Duct Free Plenum Options
  • Ducted & Non-Ducted Accessories
  • Optional student anti-huffing lock

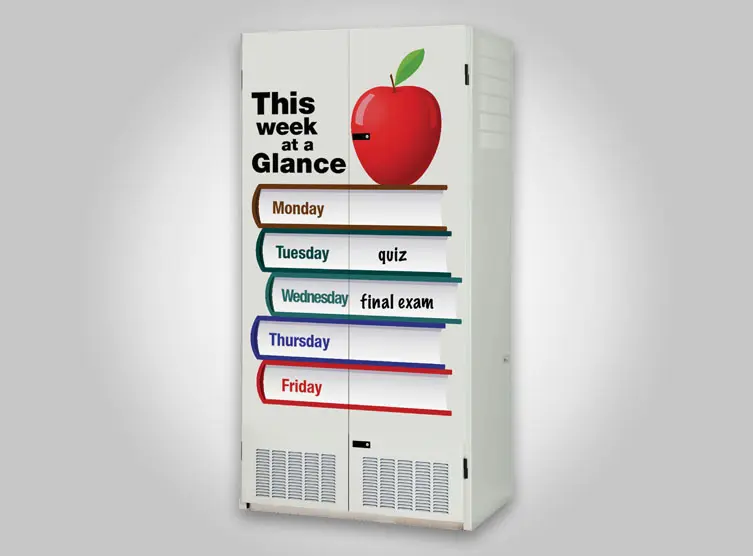

  • Optional door vinyl graphics
  • Thermostats
  • CompleteStat
  • BrightStat

  • Ventilation Options for Model Group(s)- I30H, I36H, I36Z, I42H, I48H, I60H :
    • Blank Off Plate (No Ventilations)
    • Commercial Room Ventilator
    • Energy Recovery Ventilator
  • Ventilation Options for Model Group(s)- I48Z :
    • Blank Off Plate (No Ventilations)
    • Commercial Room Ventilator
