I-TEC Heat Pump Two-Stage Step Capacity Dehumidification

Interior Solutions

Heat Pump

I-TEC-STEP CAPACITY DEHUM Series

I30H - I60H

This unit is based on Bard’s I-TEC Step Capacity Heat Pump, but it provides a unique dehumidification circuit for periods of high indoor humidity conditions. An “energy recovery ventilator” option is available to provide for outside ventilation air requirements by eliminating excessive sensible and latent loads as a result of the increased ventilation requirement.

Find a Rep

Cabinet Colors
color swatch
X = Beige
color swatch
1 = White
color swatch
4 = Buckeye Gray
Standard Louver Colors
color swatch
Clear Aluminum
color swatch
Dark Bronze
color swatch
Medium Bronze
Optional Louver Colors
color swatch
Arctic White
color swatch
Storm White
color swatch
Graphite Grey
color swatch
Milano Beige
color swatch
Dark Bronze
color swatch
Schoolbus Yellow
color swatch
Florida Orange
color swatch
Schoolhouse Red
color swatch
Chili Red
color swatch
Bahama Blue
color swatch
Deep Sea Blue
color swatch
Sage Green
color swatch
Ivy Green

I30H - I60H

  • Up to 16.5 IPLV cooling efficiency
  • Up to 3.7 COP heating efficiency
  • 2.5 to 5.0 ton cooling capacity
  • 2-stage cooling / 3-stage heating
  • Active hot-gas dehumidification circuit
  • Single and three-phase power options
  • R-410A green refrigerant
  • Copeland scroll compressor
  • Factory installed electric heat options
  • Factory installed ventilation options\
  • 2" MERV8 Air Filters
  • ECM variable speed blower motor
  • Eco-friendly insulation
  • AHRI Certified
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

Model Group Ton Capacity Electrical Supply/Return
(HxW) & Spread (in)		 Cabinet
Dimensions (in)
(WxDxH)
I30H 2.5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
 47.6x31.4x94
I36H 3
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
 47.6x31.4x94
I42H 3.5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
 47.6x31.4x94
I48H 4
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
 47.6x31.4x94
I60H 5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
 47.6x31.4x94

  • Electric Heat Options
  • 2" MERV11 or MERV13 Air Filters
  • UV-C LED Light w/MEVR13 Air Filters
  • Hot Water Coils
  • Wall-Sleeve & Louvers
  • Duct Free Plenum Options
  • Ducted & Non-Ducted Accessories
  • Optional student anti-huffing lock

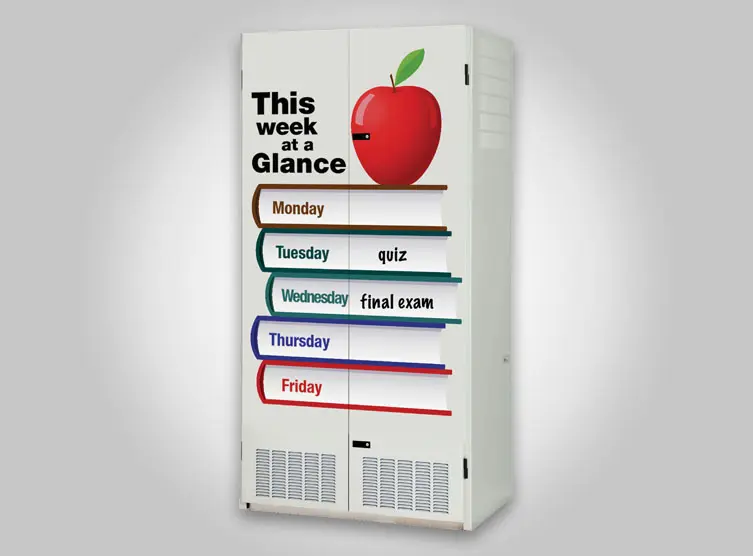

  • Optional door vinyl graphics
  • Thermostats
  • Humidistats
  • CompleteStat
  • BrightStat

  • Ventilation Options for Model Group(s)- I30H, I36H, I42H, I48H, I60H :
    • Blank Off Plate (No Ventilations)
    • Commercial Room Ventilator
    • Energy Recovery Ventilator
