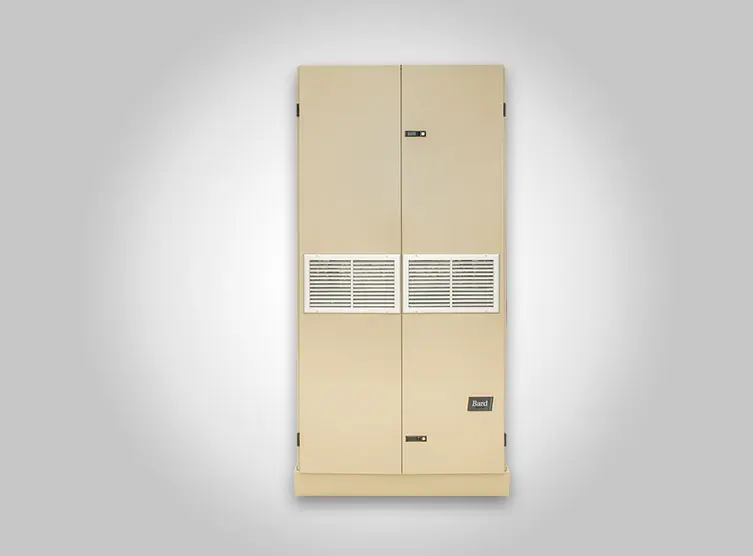

Q-TEC Air Conditioner Dehumidification

Interior Solutions

Air Conditioner

Q-TEC-STANDARD DEHUM Series

Q36A - Q48A

Based on Bard’s popular Q-TEC series, this model provides a unique dehumidification circuit for periods of high indoor humidity conditions. Additionally, an “energy recovery ventilator” may be provided to allow for outside ventilation air requirements by eliminating excessive sensible and latent loads as a result of the increased ventilation requirement.

Find a Rep

Cabinet Colors
color swatch
X = Beige
color swatch
4 = Buckeye Gray
Standard Louver Colors
color swatch
Clear Aluminum
color swatch
Dark Bronze
color swatch
Medium Bronze
Optional Louver Colors
color swatch
Arctic White
color swatch
Storm White
color swatch
Graphite Grey
color swatch
Milano Beige
color swatch
Dark Bronze
color swatch
Schoolbus Yellow
color swatch
Florida Orange
color swatch
Schoolhouse Red
color swatch
Chili Red
color swatch
Bahama Blue
color swatch
Deep Seablue
color swatch
Sage Green
color swatch
Ivy Green
Q-TEC

Q36A - Q48A

  • 11.0 EER cooling efficiency
  • 3.0, 3.5, and 4.0 ton cooling capacity
  • Single and three-phase power options
  • Dehumidification circuit
  • R-410A green refrigerant
  • Copeland scroll compressor
  • ECM variable speed blower motor
  • Factory installed electric heat
  • Factory installed ventilation options
  • Factory installed climate control options
  • AHRI Certified
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

Model Group Ton Capacity Electrical Supply/Return
(HxW) & Spread (in)		 Cabinet
Dimensions (in)
(WxDxH)
Q36A 3
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
 42x24.1x86.9
Q42A 3.5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
 42x24.1x86.9
Q48A 4
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • N/A
  • N/A
  • N/A
 48x24.1x86.9

  • 2" MERV8 or MERV13 Air Filters
  • UV-C LED Light w/ MERV13 Air Filters
  • Hot Water Coils
  • Wall-Sleeve & Louvers
  • Duct Free Plenum Options
  • Ducted & Non-Ducted Accessories
  • Thermostats
  • CompleteStat
  • BrightStat

  • Ventilation Options for Model Group(s)- Q36A, Q42A, Q48A :
    • Blank Off Plate (No Ventilations)
    • Barometric Fresh Air Damper
    • Commercial Room Ventilator
    • Economizer
    • Energy Recovery Ventilator
