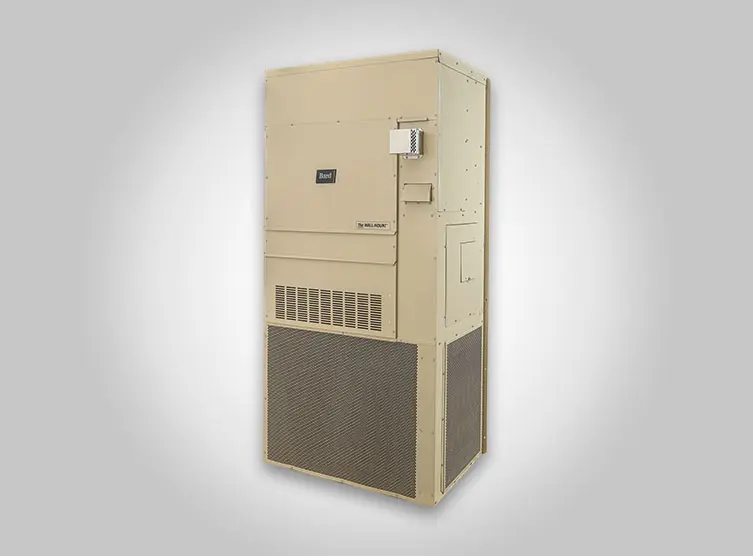

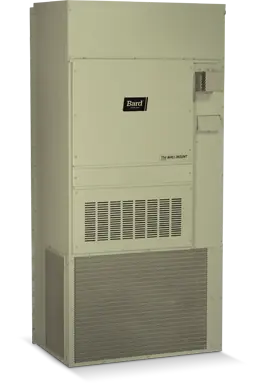

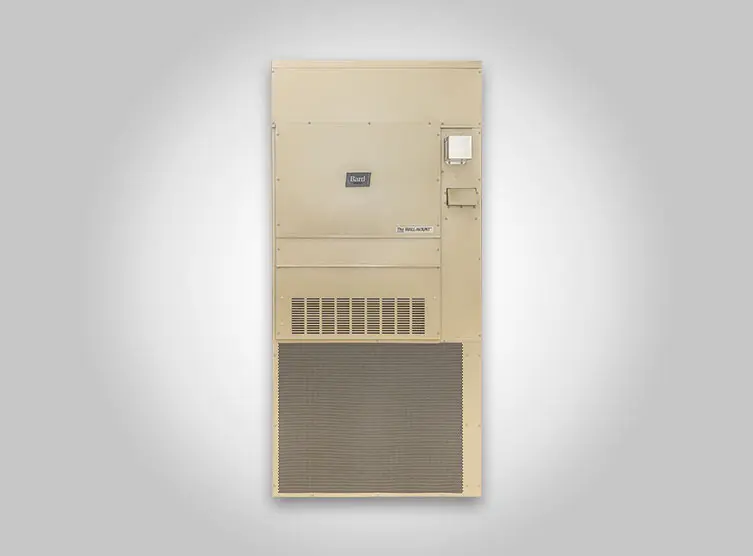

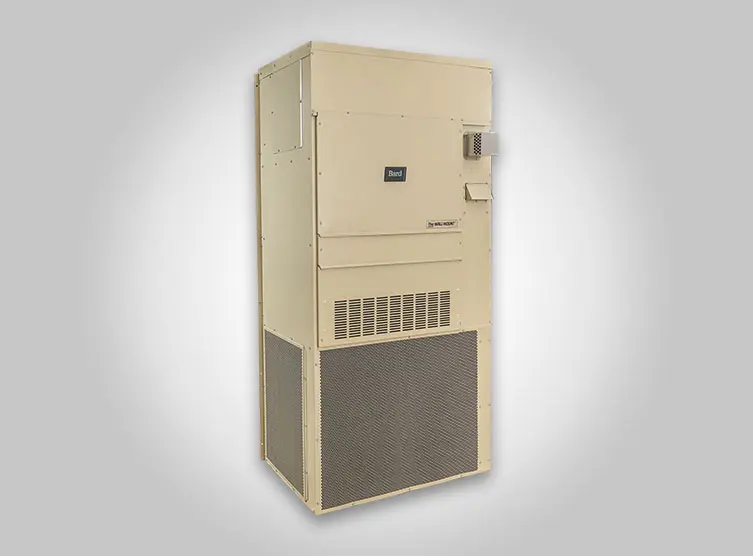

Wall-Mount Gas/Electric Two-Stage Step Capacity
Exterior Wall-Mount
Gas/Electric
G/E-STEP CAPACITY Series
WG2S - WG5S
The Bard Wall-Mount Electric Air Conditioner with gas fired heating is a self contained energy efficient system which is designed to offer maximum indoor comfort at a minimal cost without using valuable indoor floor space or outside ground space. This unit is the ideal product for versatile applications. Factory or field installed accessories are available to meet specific job requirements.
Find a Rep
Cabinet Colors
X = Beige
4 = Buckeye Gray
8 = Dark Bronze
WG2S - WG5S
- Up to 15.6 IPLV cooling efficiency
- 82% TE (thermal efficiency)
- Two stage compressor
- 2 to 5 ton cooling capacity
- Single or three-phase power
- ECM indoor blower motor
- 2" MERV8 Air Filters
- R-410A green refrigerant
- "In-shot" burners
- Convertible to LP
- Factory installed ventilation options
- AHRI Certified
- ETL Listed (US and Canada)
* For full product specifications see Product Resources tab below.
| Model Group | Ton Capacity | Electrical | Supply/Return (HxW) & Spread (in) |
Cabinet Dimensions (in) (WxDxH) |
|---|---|---|---|---|
| WG3S | 3 |
|
|
42x27.3x87.5 |
| WG4S | 4 |
|
|
42x27.3x97.5 |
| WG5S | 5 |
|
|
42x27.3x97.5 |
| WG2S | 2 |
|
|
42x27.3x87.5 |
- 2" MERV11 or MERV13 Air Filters
- Field Installed Ventilation Options
- Field Installed LP Conversion Kit
- Supply/Return Grilles
- Thermostats
- CompleteStat
- BrightStat
- Ventilation Options for Model Group(s)- WG3S, WG4S, WG5S, WG2S :
- Blank Off Plate (No Ventilations)
- Barometric Fresh Air Damper
- Economizer
- Energy Recovery Ventilator
