MULTI-TEC PLC Electric Reheat Dehumidification

Exterior Wall-Mount

Air Conditioner

MULTI-TEC-PLC-DEHUM Series

W36A*E - W72A*E

The MULTI-TEC Wall-Mount Air Conditioner utilize PLC technology to allow multiple units to operate connected to a single LC6000 controller. When installed with an optional 100% free cooling economizer, the unit will supply full-rated airflow in free cooling mode with the ability to exhaust unconditioned indoor air without the need for additional relief openings in the structure.

Find a Rep

Cabinet Colors
color swatch
X = Beige
color swatch
1 = White
color swatch
4 = Buckeye Gray
color swatch
5 = Desert Brown
color swatch
8 = Dark Bronze
color swatch
S = Stainless Steel
color swatch
A = Aluminum

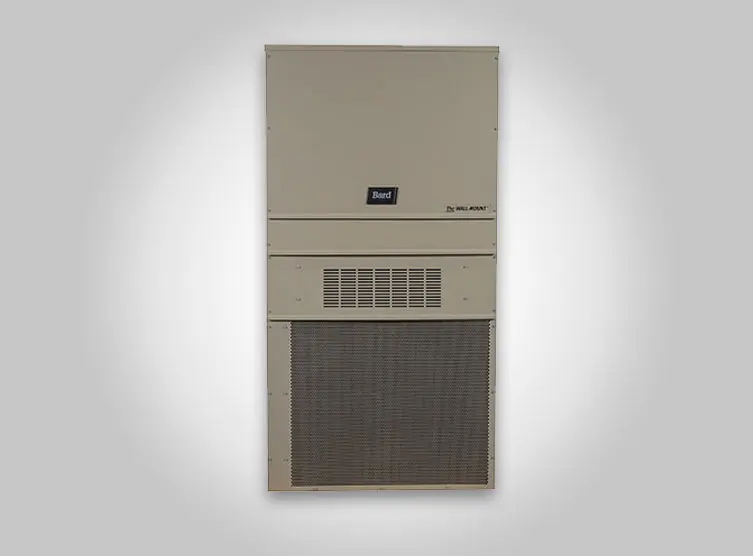

Multi-TEC small cabinet

W36A*E - W72A*E

  • Up to 11.3 EER
  • PLC Control Module
  • Copeland scroll compressors
  • R-410A green refrigerant
  • Copper tube / aluminum fin coils
  • Optional Free Cooling Economizer
  • AHRI Certified
  • ETL Listed (US and Canada)

* For full product specifications see Product Resources tab below.

Model Group Ton Capacity Electrical Supply/Return
(HxW) & Spread (in)		 Cabinet
Dimensions (in)
(WxDxH)
W36A 3
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 8x28
  • 14x28
  • 18
38.2x17.1x74.6
W42A 3.5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42x25.5x84.8
W48A 4
  • 230/208/60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42x25.5x84.8
W60A 5
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42x25.5x93
W72A 6
  • 230/208-60-1
  • 230/208-60-3
  • 460-60-3
  • 10x30
  • 16x30
  • 30
42x25.5x93

  • Electric Reheat Dehum Option
  • Hot Gas Reheat Dehum Option
  • 2" MERV11 or MERV13 Air Filters
  • LC6000 PLC Controller
  • Supply/Return Grille

  • Ventilation Options for Model Group(s)- W36A, W42A, W48A, W60A, W72A :
    • Blank Off Plate (No Ventilations)
    • Economizer
