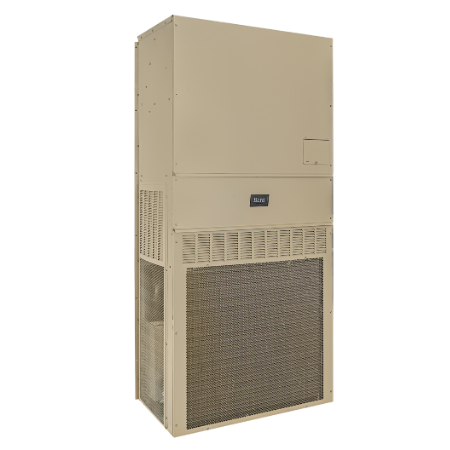

Data Flex with Inverter Technology Dehumidification
Exterior Wall-Mount
Air Conditioner
Data Flex Series
These units add dehumidification to the Bard Data Flex with inverter technology, engineered for data centers, information technology, telecommunication, and equipment cooling applications which uptime, precision, and efficiency are critical. These air conditioners are designed for challenging ambient environments (-40 up to 131 degrees F), delivering precise temperature and humidity control with a strong emphasis on energy efficiency.
Find a Rep
Cabinet Colors
X = BEIGE
1 = WHITE
4 = BUCKEYE GRAY
5 = DESERT BROWN
8 = DARK BRONZE
S = STAINLESS STEEL
A = ALUMINUM
- 2 through 6 ton capacities in two nominal chassis
- R-454B green refrigerant
- Soft-start functionality to reduce starting load amps
- BACnet and Modbus
- Direct replacement compatibility for existing 3.5 to 6 ton wall-mounts and compatible with wall curbs
- Coated coil, coated cabinet, and stainless-steel options
- Fire/smoke shutdown, emergency ventilation, and generator operation modes
- Modulating low ambient operation based on system pressure
- Optional economizer providing full rated airflow free cooling and static positive room pressurization
- Training and commissioning available
- Available in voltages:
- R: 208/230-60-1, 200/220-50-1 (208/230V 60 Hz single phase or 200/220V 50 Hz single phase)
- S: 208/230-60-3, 200/220-50-3 (208/230V 60 Hz single phase or 200/220V 50 Hz three phase)
- T: 460-60-3, 415-50-3 (460V 60 Hz or 415V 50 Hz three phase)
* For full product specifications see Product Resources tab below.
| Model Group | Ton Capacity | Electrical | Supply/Return (HxW) & Spread (in) |
Cabinet Dimensions (in) (WxDxH) |
|---|
- Flexible control options, including LC6000 controller with data center friendly logic and standard thermostat compatibility
- Advanced phase monitoring and built-in system diagnostics with digital display
